Fixed or adjustable bracket installation



Bracket with screw sets

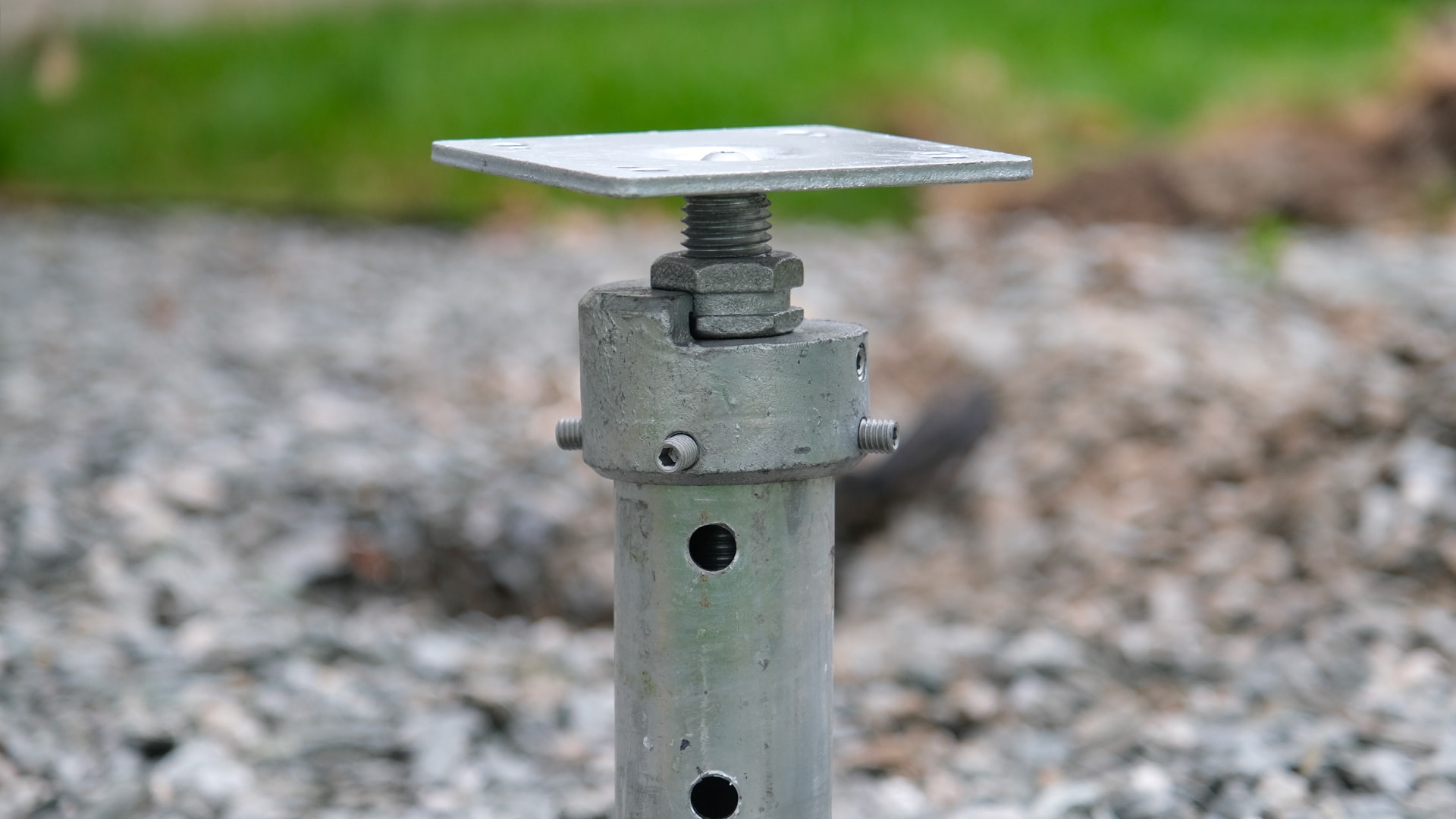

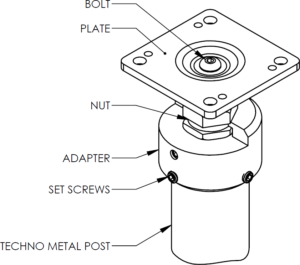

The pile cap, otherwise known as the plate (fixed or adjustable) sits directly on the shaft below it.  The 4 set screws will be bolted and tightened, with a minimum of 15 ft-lb of torque using a hexagonal key.  For the adjustable cap, a fifth screw needs to be installed, to prevent lateral movement of the threaded rod.



Bracket with self-drilling screws



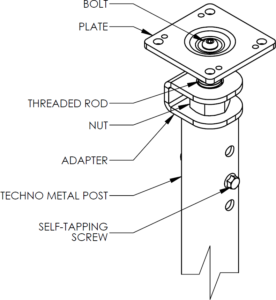

A sleeve is attached to the shaft of the pile using self-drilling screws (a minimum of two or three screws is required, see below).  Techno Metal Post recommends using the following product or equivalent:

  • UCAN (model TRH 12114K5) self-drilling screws (or any equivalent brand);
  • Size 12-24;
  • Length 1.25” (32 mm);
  • Drill point #5 in galvanized steel.

The allowable uplift resistance varied (lb) between the pile cap and the pile during the laboratory test.



UCAN Self-drilling Screws
Allowable uplift resistance (lb) between the pile cap and the pile
Screw size Point Resistance for 2 screws Resistance for 3 screws Resistance for 4 screws
12-24 #5 2 000 lb 3 000 lb 4 000 lb



Please note that for deck piles and building additions, we recommend using a minimum of 2 self-drilling screws.  For piles supporting a structure with a roof and no floor (carport, pergola, etc.), we recommend using a minimum of 3 self-drilling screws.  The connection of the supported infrastructure may limit the uplifting force.

The use of an adjustable pile cap must be avoided for free-standing structures with a roof (carport, pergola, etc) given the presence, of greater lateral and uplift loads.
