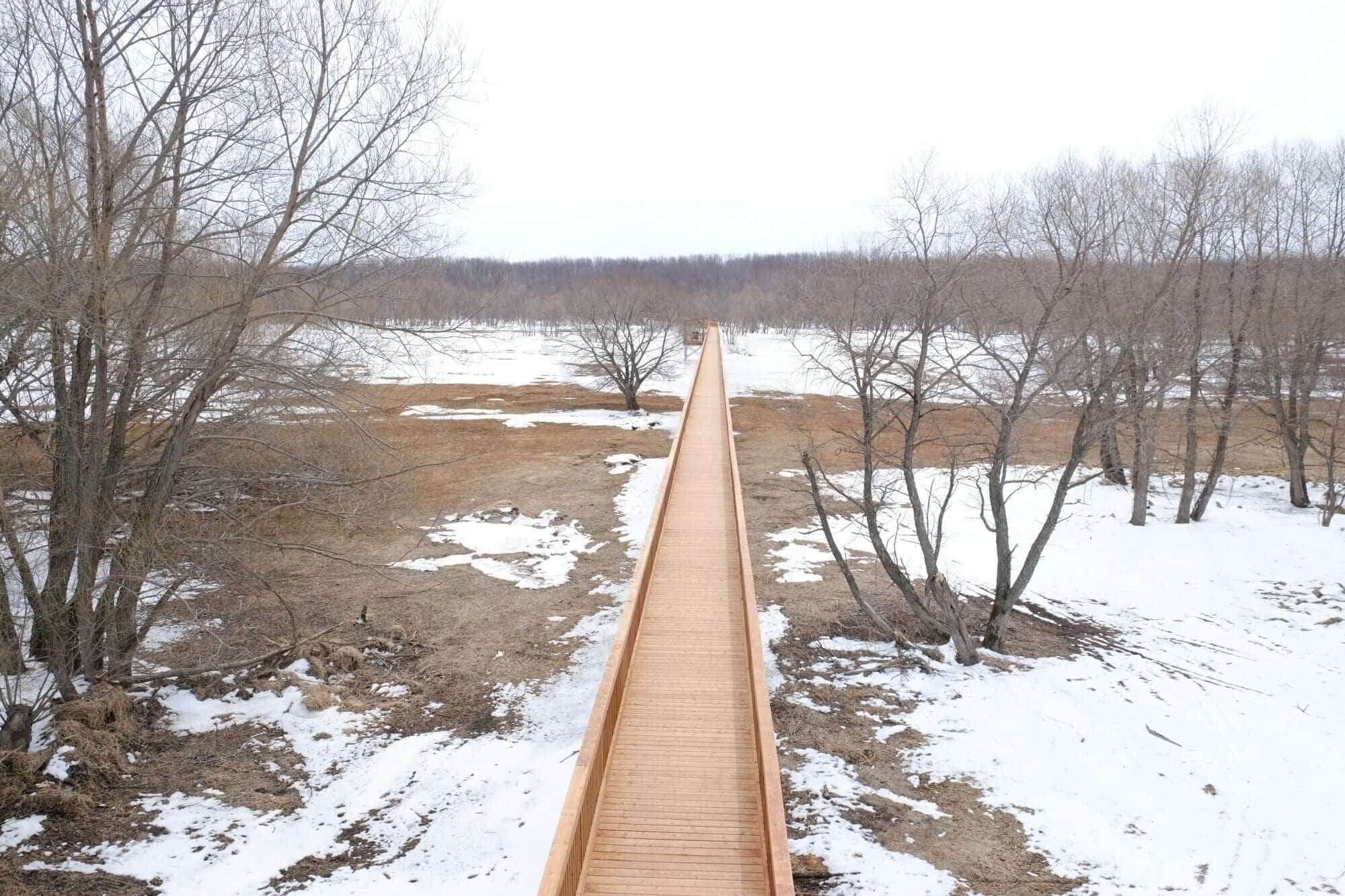

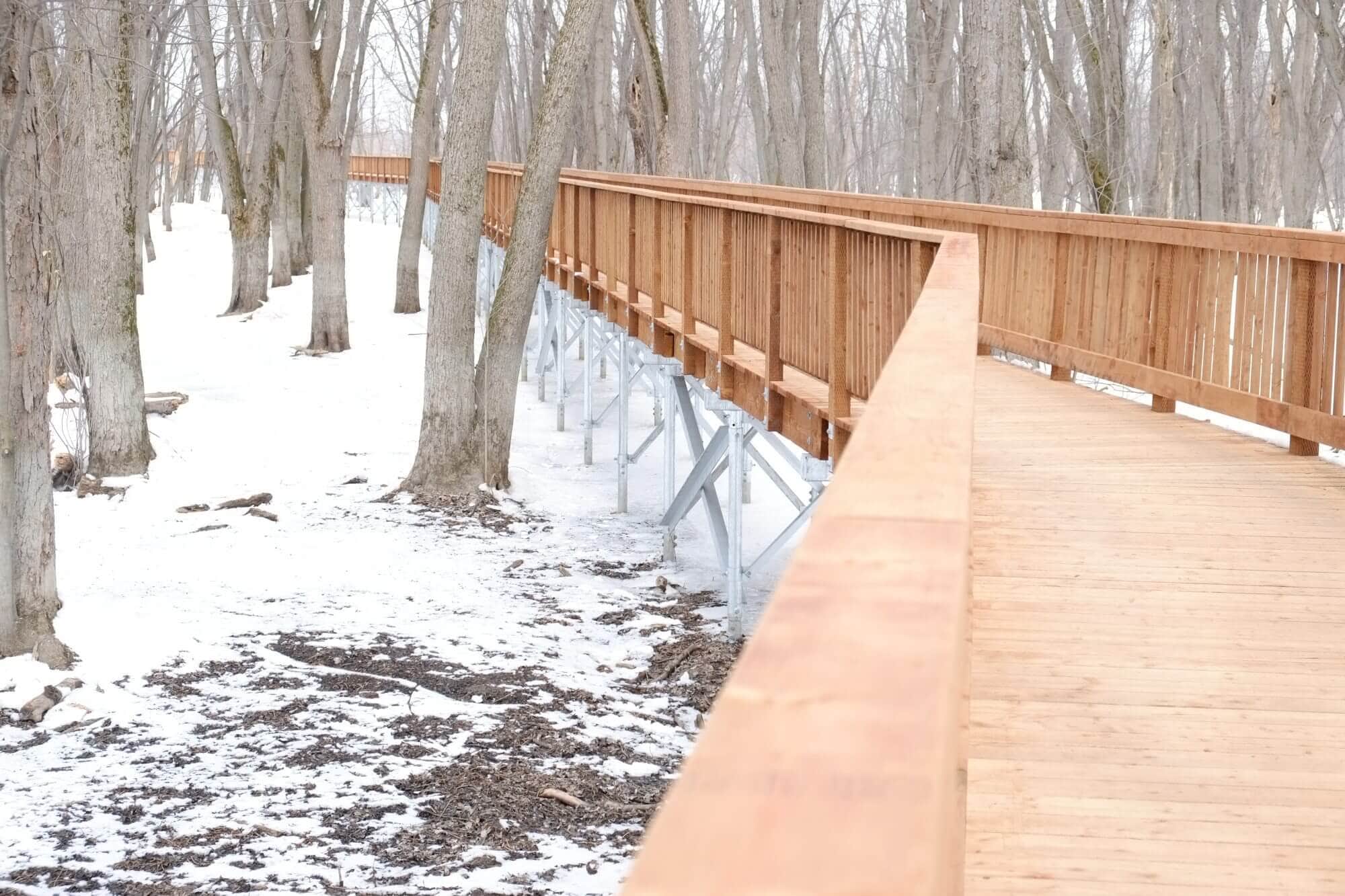

The Ecomaritime Park boardwalk in l’Anse du Port, Nicolet, Qc., Canada is now open. This elevated wooden boardwalk – 1km long, with a 12 m (39') high observatory at the end – was completely reconstructed. It crosses a sugar bush of silver maples and a marshland, which is home to a wide variety of fauna.
Year: January 2018
Dealer: Bois-Francs / Québec Est
Engineer in charge of the project: Rouleau – Desaulniers
Location: Ville de Nicolet
Main contractor: Lambert et Grenier
Project objectives:
- To replace an existing boardwalk (on timber piles), 2300 linear feet in length
- To install a new boardwalk on helical piles
Specific challenges:
- Working in winter conditions
- Tide (level of water)
Advantages:
- Access with the installation equipment
- Speed
- Low environmental impact
- No excavation
Materials used:

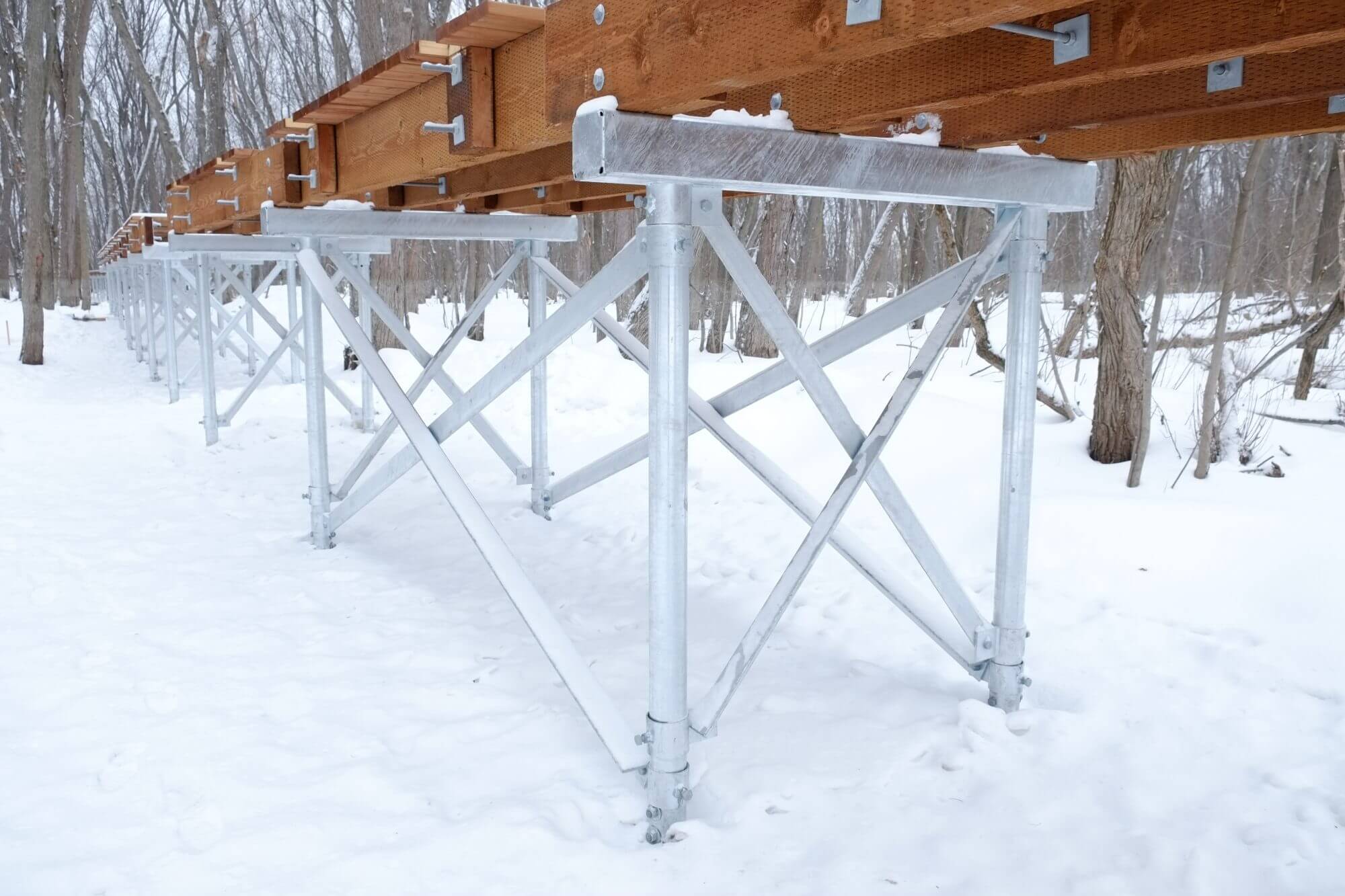

- P4 pile model (412 units) in galvanized steel
- Cross bracing by others
Type of soil: sand and clay

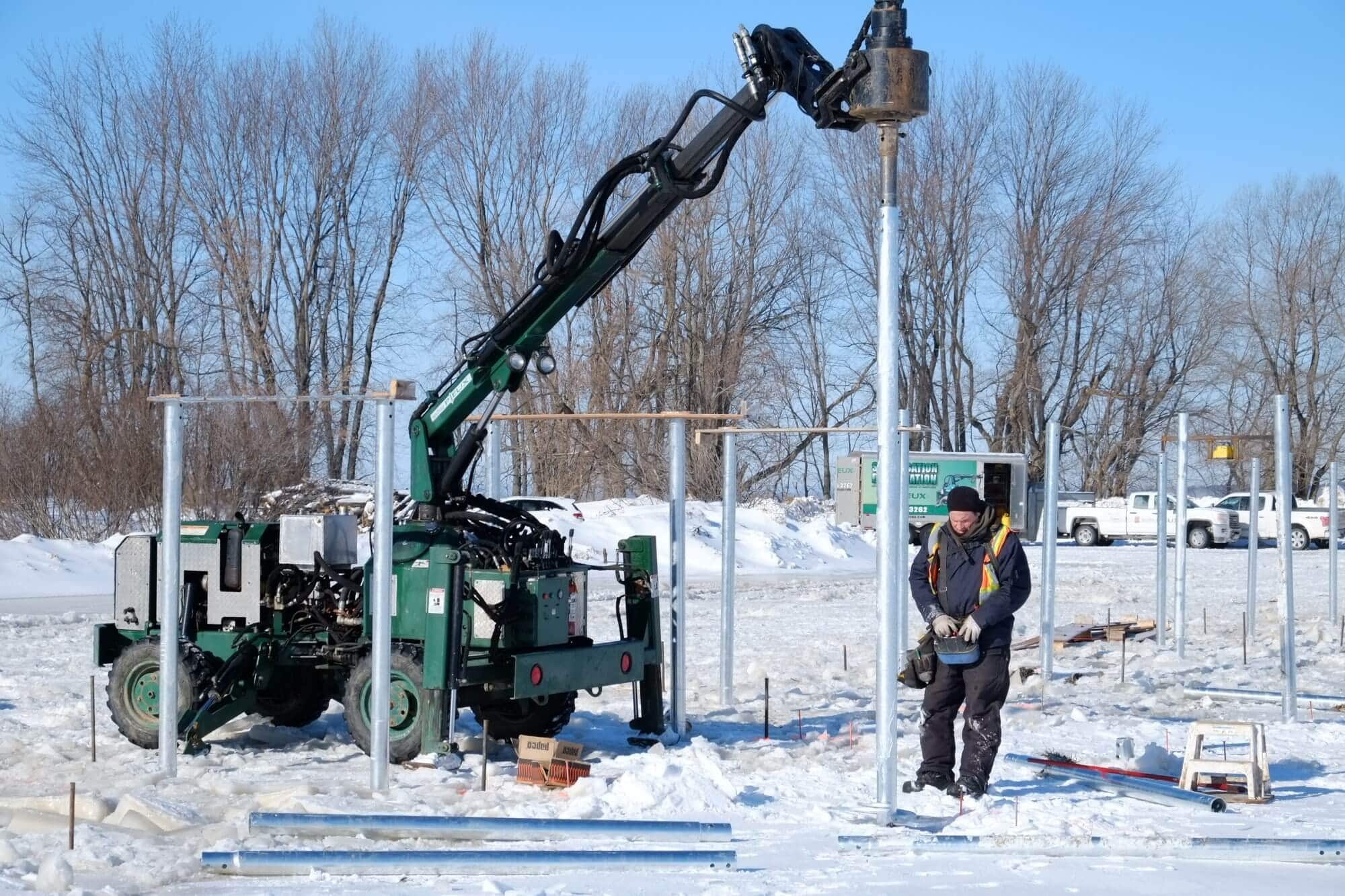

Equipment used: ET1 and EM1
Torque power per pile: 1100 ft-lb to 5000 ft-lb
Engineer’s estimated requirements: 4” diameter piles in galvanized steel
Insertion depth: Approximately 9 feet
Structural details: Structure is steel/wood
