Techno Metal Post engineering service

FROM DESIGN TO MANUFACTURING

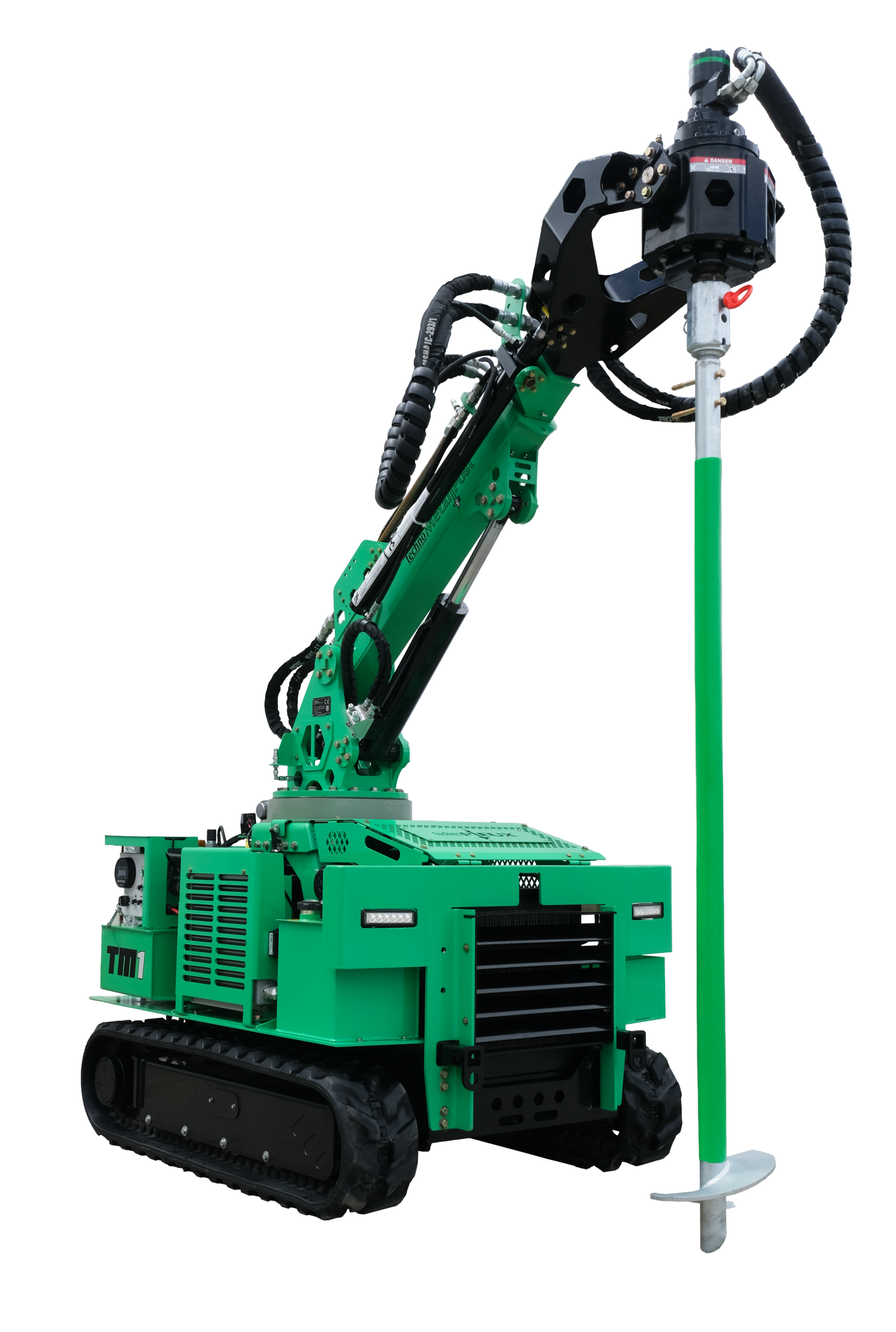

The mechanical engineering department at Techno Metal Post has designed and developed a series of specialized hydraulic equipment, exclusively for the installation of helical pier foundations. We have four models that are available, depending on the project needs. A single machine compact in size, allows the crew to complete installations for even the toughest foundations and tightest spots. It is less disruptive to surrounding areas compared to traditional methods, as it does not require excavation, the use of heavy machines, or concrete pouring.

Another added benefit is the minimal impact on your lawn and surrounding landscape, leaving behind only a small footprint. Both customers and installers alike, are highly satisfied with the ability to start construction on their project within a short period of time, even as little as within the same day. In the end, your project was efficient, tidy and cost-effective.

Find out more about the minimum access width you need for the installation equipment here.

R2D

This is our smallest machine available, and can install piers in any location. Despite its small size, it can actually fit through a door frame, and is extremely powerful.

Features

Dimensions (L x W x H)
98 ½" x 29" x 59"
Weight
1,653 lb
Maximum mast height
133 ⅞"
Mast rotation
+/- 60°
Minimum clearance required for installation
7"
Maximum compressive bearing capacity per installed pile
Service: 25,000 lb (110 kN)

EM1

Our mid-range model offers more power than the R2D, when needed. This machine can easily get to the job site and will complete the installation of helical piers faster and more accurately than any other machine on the market.

Features

Dimensions (L x W x H)
93" x 48" x 66"
Weight
4,464 lb
Maximum mast height
145"
Mast rotation
360°
Minimum installation clearance
8"
Maximum compressive bearing capacity per installed pile
33,750 lb (150 kN)

EM2

Recently, our team has developed an updated state-of-the-art machine, the new EM2! This powerful machine offers unequalled traction while respecting the installation site. Its powerful motor allows for a quick and efficient installation, in addition to reducing carbon emissions.

Features

Dimensions (L x W x H)
106" x 48" x 68"
Weight
6,000 lb
Maximum mast height
147"
Mast rotation
360°
Minimum installation clearance
8"
Maximum compressive bearing capacity per installed pile
33,750 lb (150 kN)

ET1

This is our heavy-duty model for industrial projects. When our engineers require larger diameter piers with high load-bearing capacity, the ET1 is the answer for the project.

Features

Dimensions (L x W x H)
168" x 68" x 84" (4,267 mm x 1,727 mm x 2,133 mm)
Weight
8,900 lb (4,037 kg)
Maximum mast height
180" (4,572 mm)
Mast rotation
360°
Minimum installation clearance
9" (229 mm)
Maximum compressive bearing capacity per installed pile
50,000 lb (225 kN)
