Type of Project
Installation of helical piles by Techno Metal Post to support reinforced concrete beams for a 31 sqm brick and block extension in Seasalter, UK.
Location
Seasalter, Kent, CT5 (United Kingdom)
Challenges
- 1 m deep by 2 m wide excavation requiring long-reach installation equipment
- Proximity to the sea (approximately 30 m)
- Tidal water ingress within the excavation during works
- No load-bearing strata encountered up to 15 m due to silt deposits
- Highly corrosive ground conditions due to tidal seawater exposure
Solutions

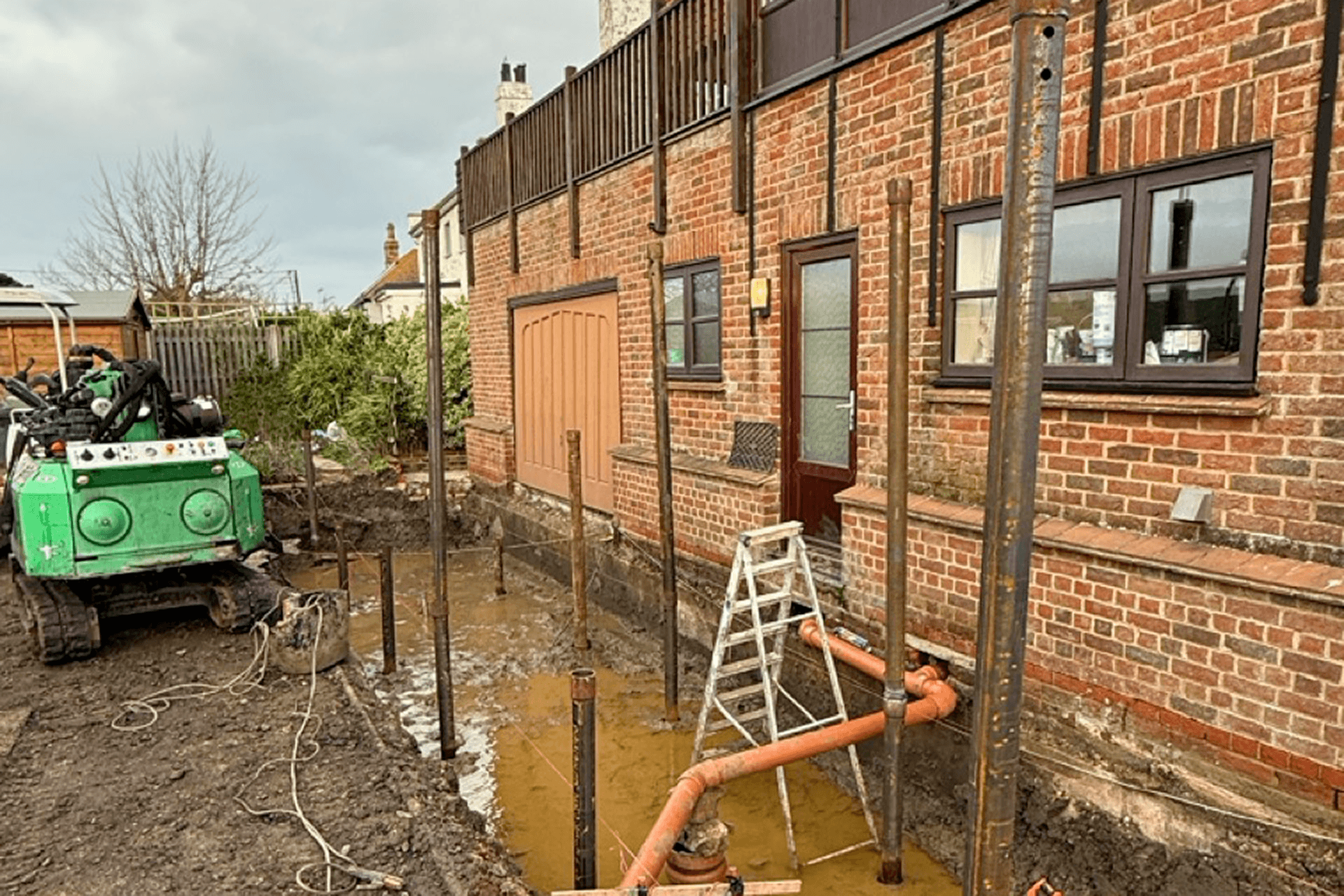

- Installation of 12 Techno Metal Post helical piles (model P3 Ø 88.9 mm), installed to an average depth of 17 metres, achieving working loads between 85 kN and 130 kN
- Installation of Techno Metal Post's proprietary cathodic protection system, featuring two impressed current spin anodes, effectively preventing corrosion and ensuring continuous long-term protection
- Designed service life exceeding 90 years, ensuring durable and reliable performance in a highly aggressive environment
Results / Conclusion
Despite challenging ground conditions, tidal water ingress, and adverse weather, all 12 helical piles were successfully installed within 5 days.
The Techno Metal Post solution delivered a robust and high-performance deep foundation system, providing a stable and durable base ideally suited for the proposed single-storey extension.
Additional Information
Dealer: Techno Metal Post UK
