Construction of a New House Using Techno Piles

Project Type

Construction of a detached house requiring a precise foundation system.

Location

CM19

Challenges

The ground had rubble on the surface, which made installing foundations hard. It was important to place the helical piles very accurately to keep the building stable over time in this type of soil.

Solutions

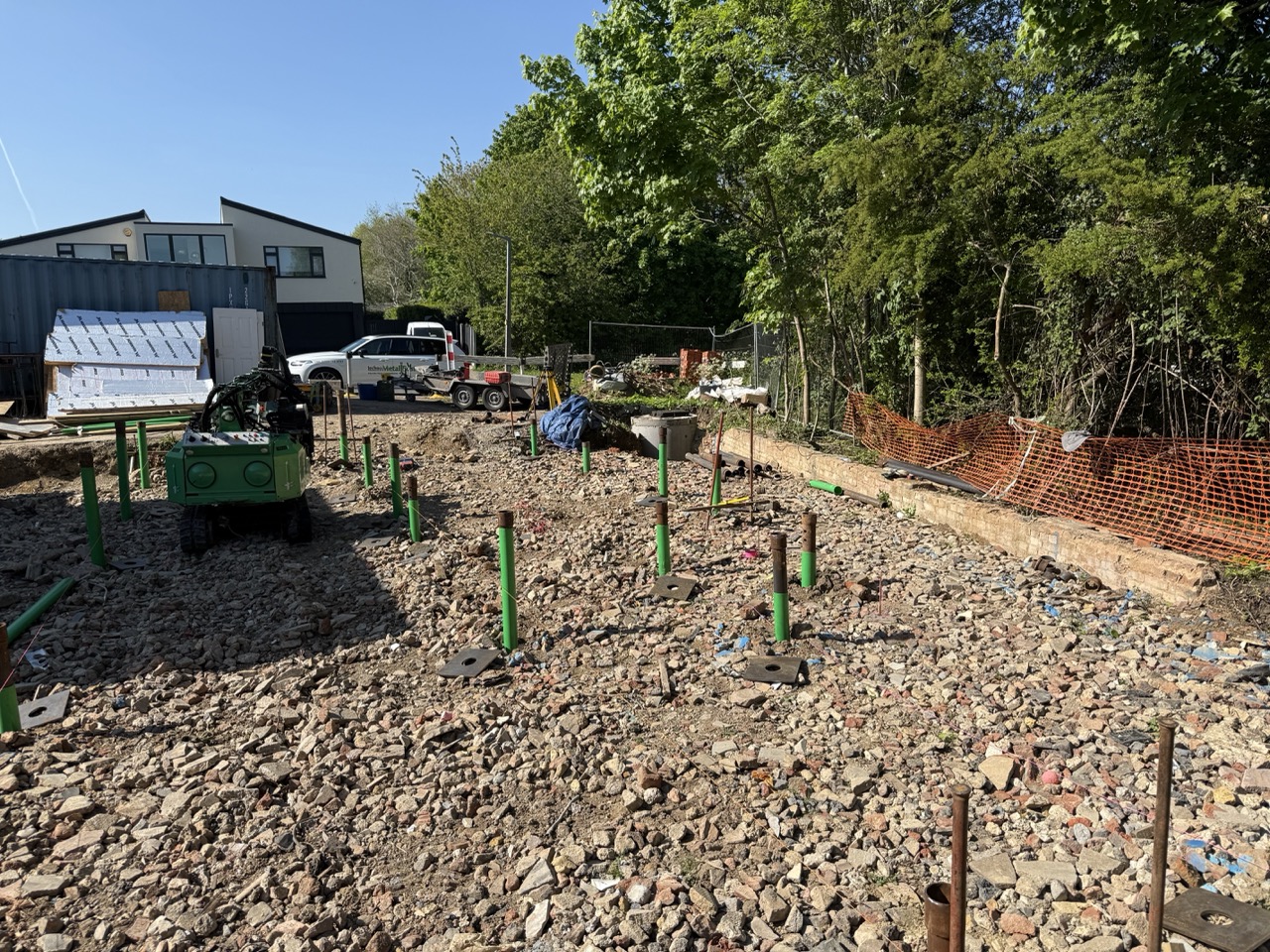

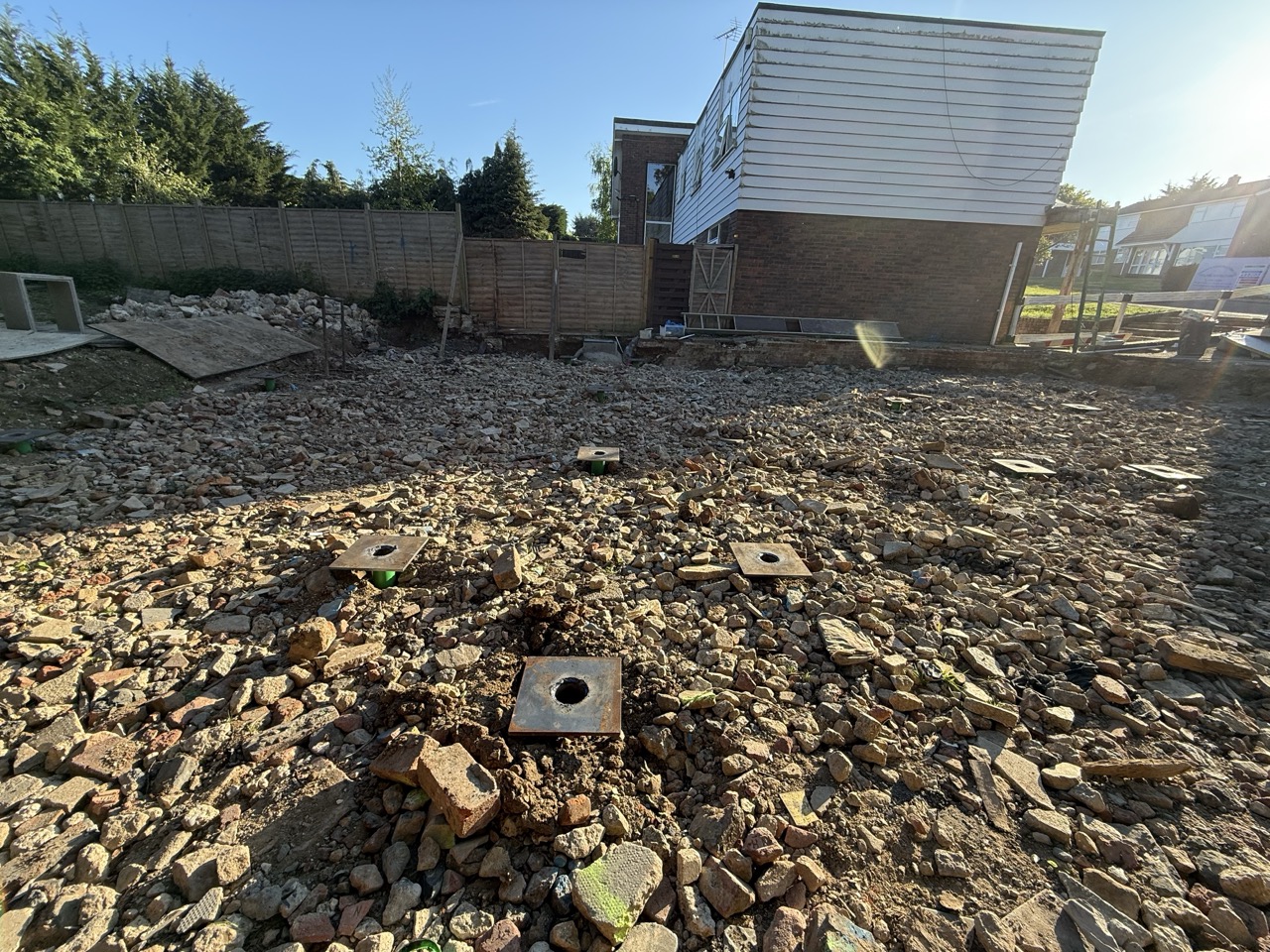

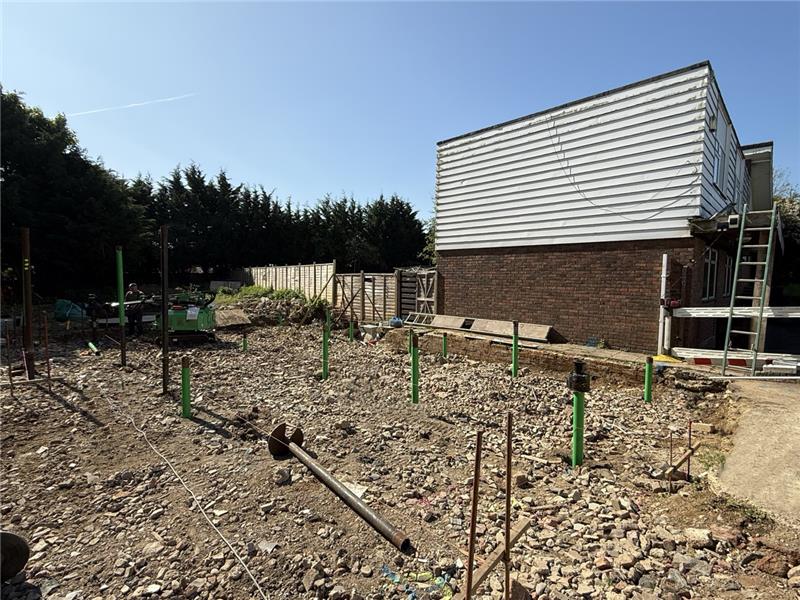

Techno Metal Post used their expertise to install 26 piles, mixing P3-16 and P4-16 models. Each pile was put at least 8 metres deep to give strong and lasting support, while reducing problems caused by drying roots. Using our remote-controlled, high precision equipment helped manage the installation perfectly, even with obstacles on the surface.

Results / Conclusion

We met all the accuracy and depth requirements during the project. Techno Metal Post provided a stable, strong foundation made for specific ground conditions. The project was finished successfully, meeting all technical and quality needs.
