Sustainable Passive Houses: A Helical Pile Foundation for a Concrete Slab Raft

Project Type

A helical pile foundation for a Passive House’s concrete slab raft.

Location

Great Bardfield, Essex, England.

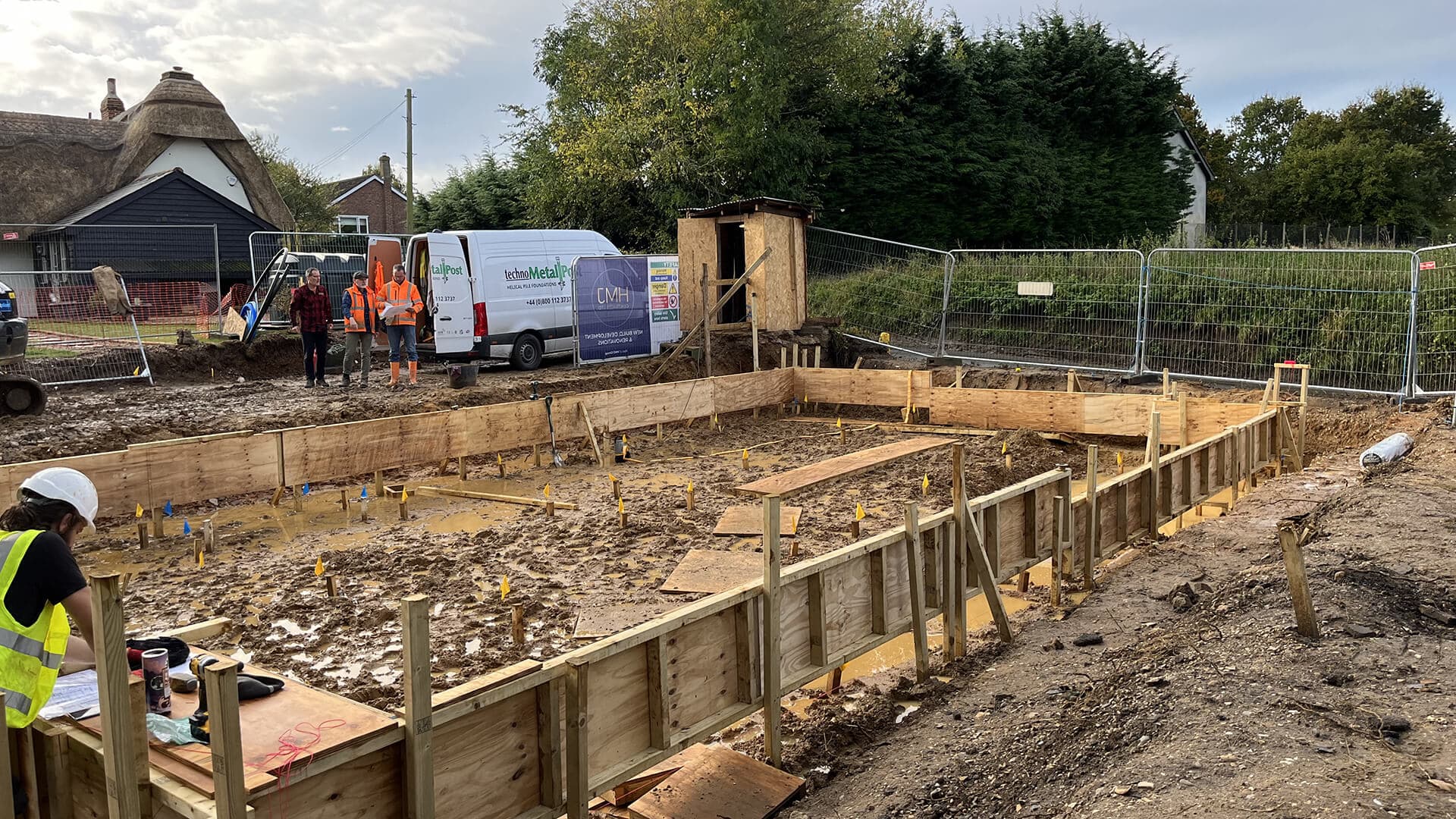

Challenges

• Very soft ground, requiring larger helix diameters to ensure stability.

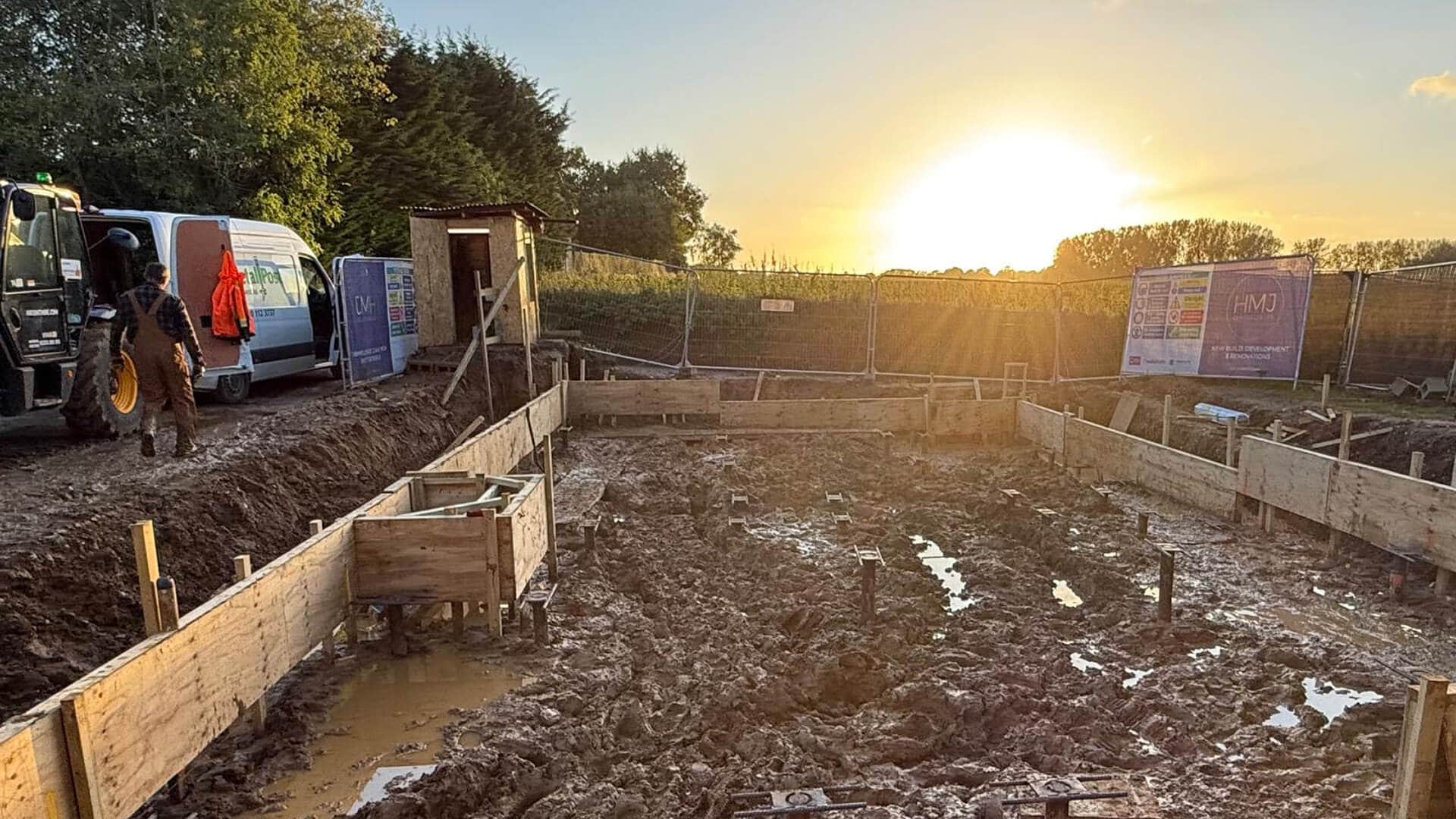

• Heavy rainfall made the installation process more challenging.
• Selecting the right piles to support the structure on soft ground.
• Managing installation in difficult conditions after prolonged rainfall.

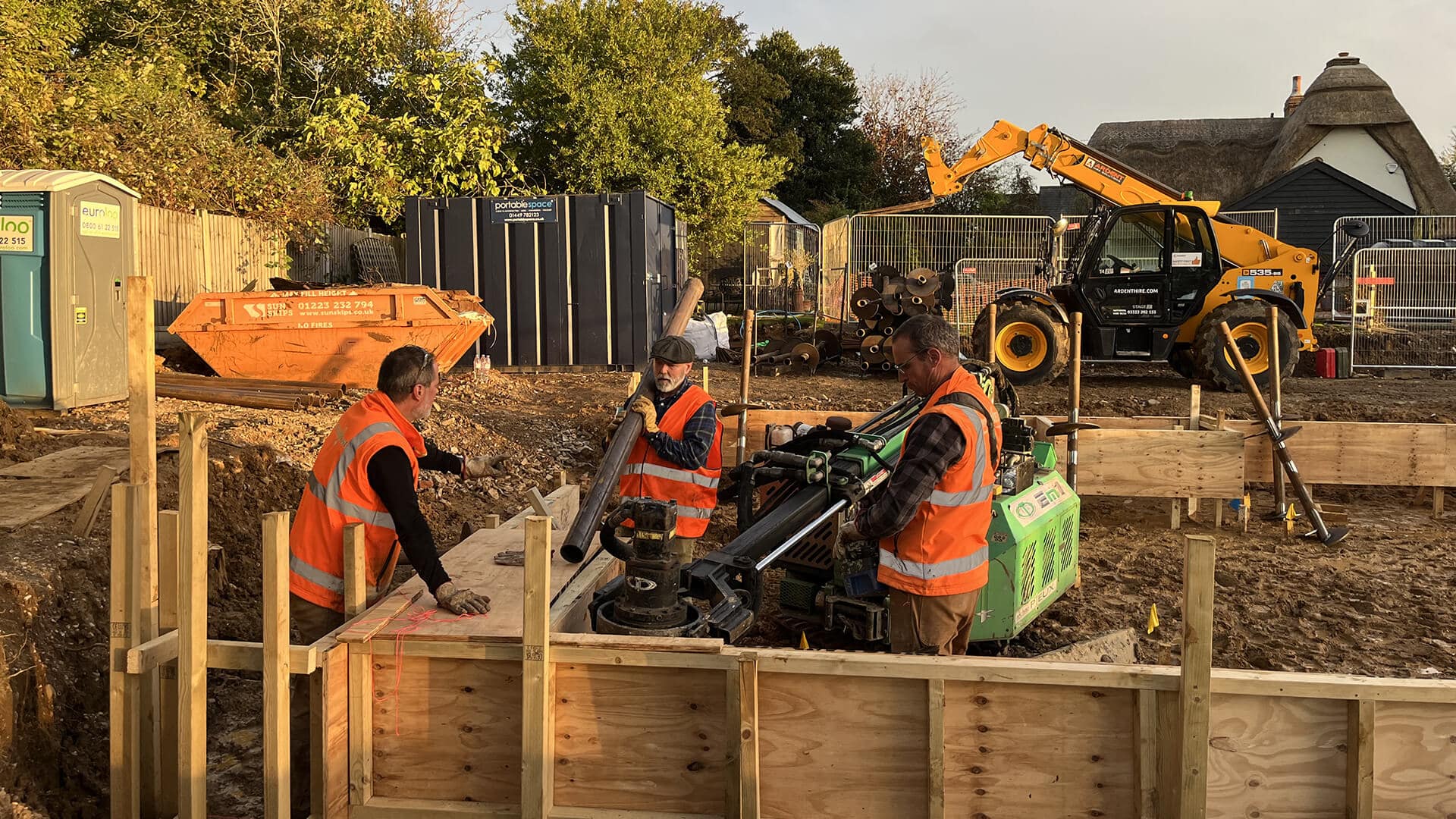

• Completing the installation within just 3 days despite site challenges.

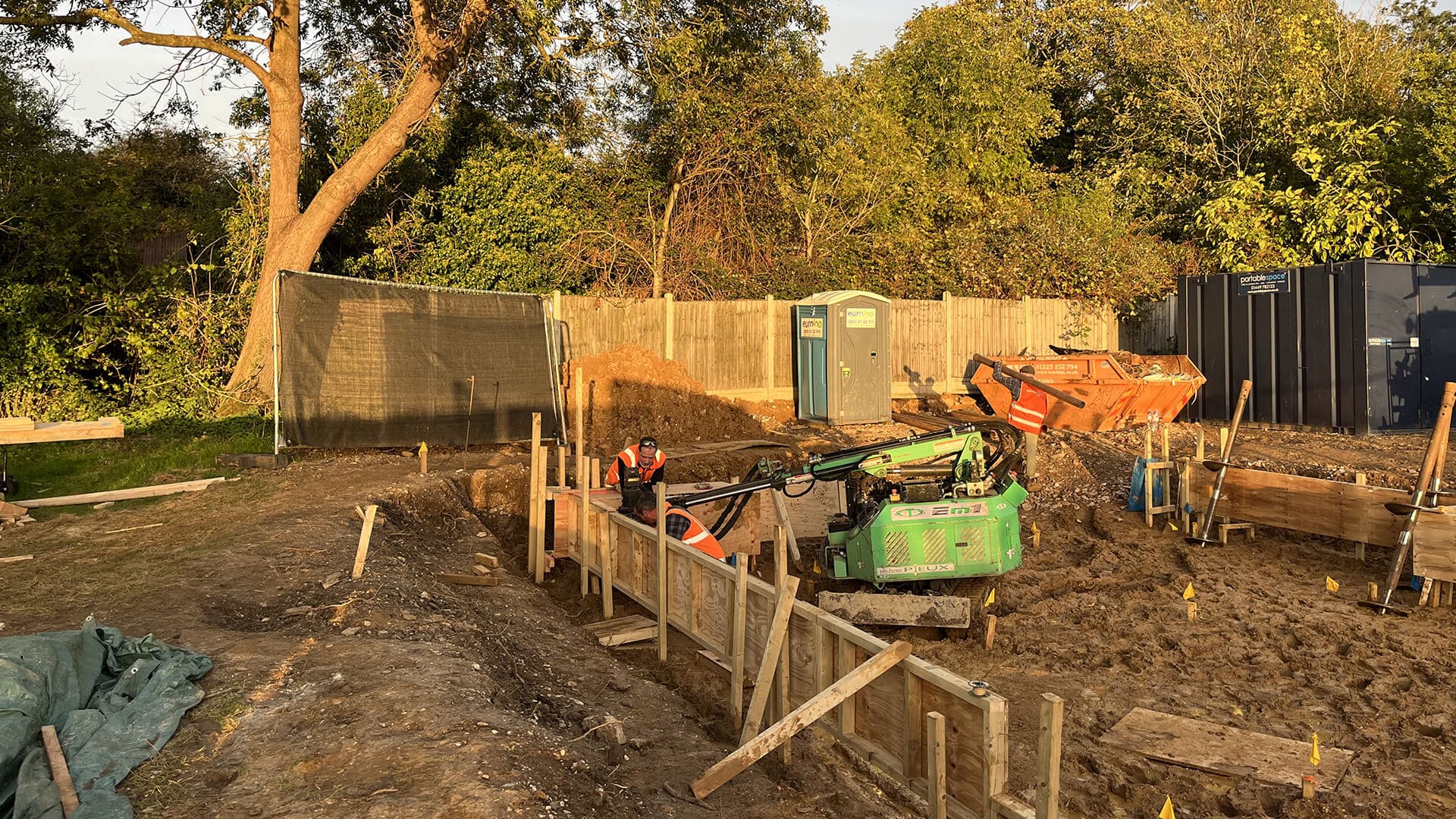

Solution

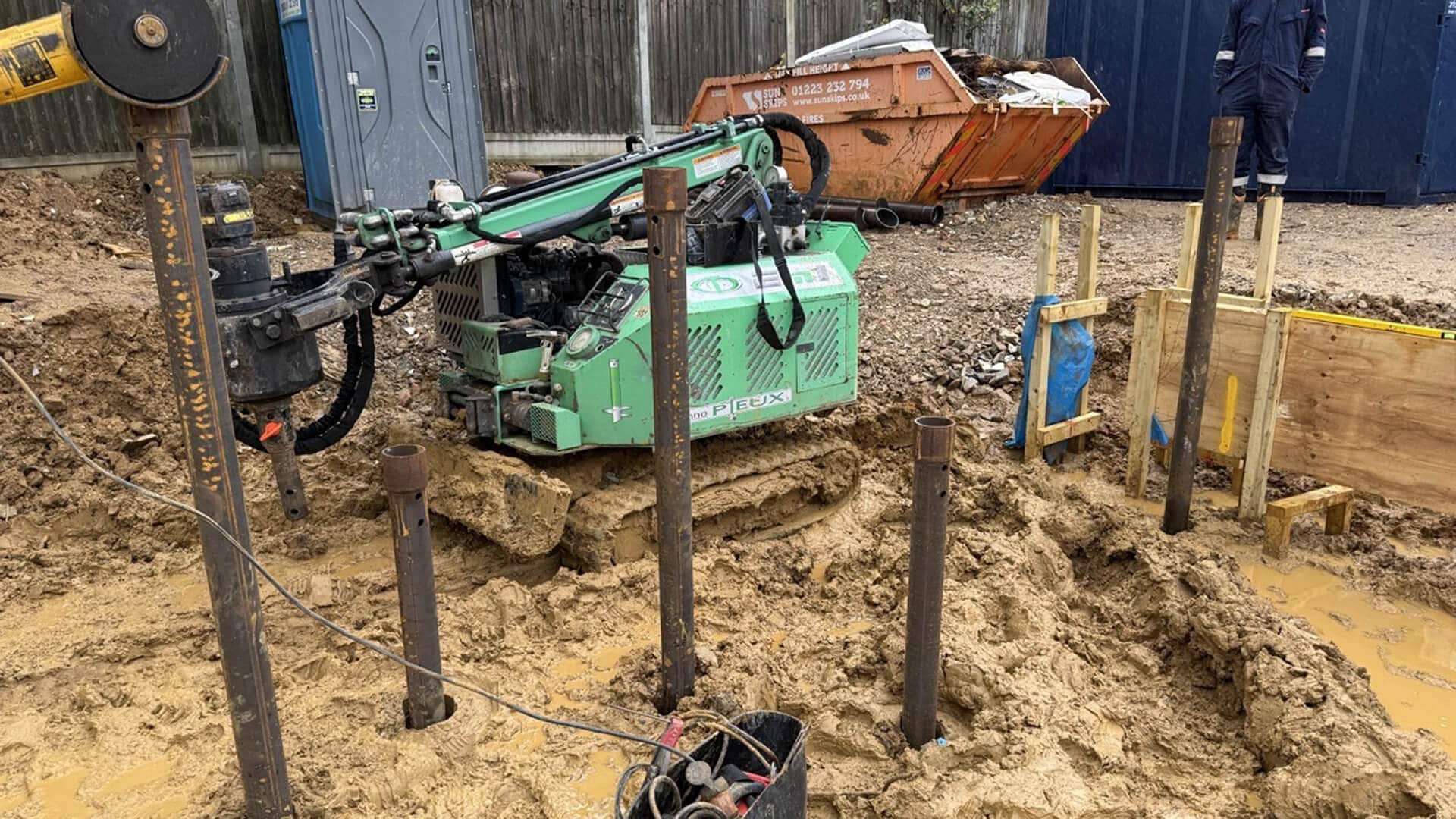

• The installation of 37 helical piles (Ø 88.9 mm) with an 18” helix for loads up to 75 kN, and double 16-18” helix for loads up to 100 kN.

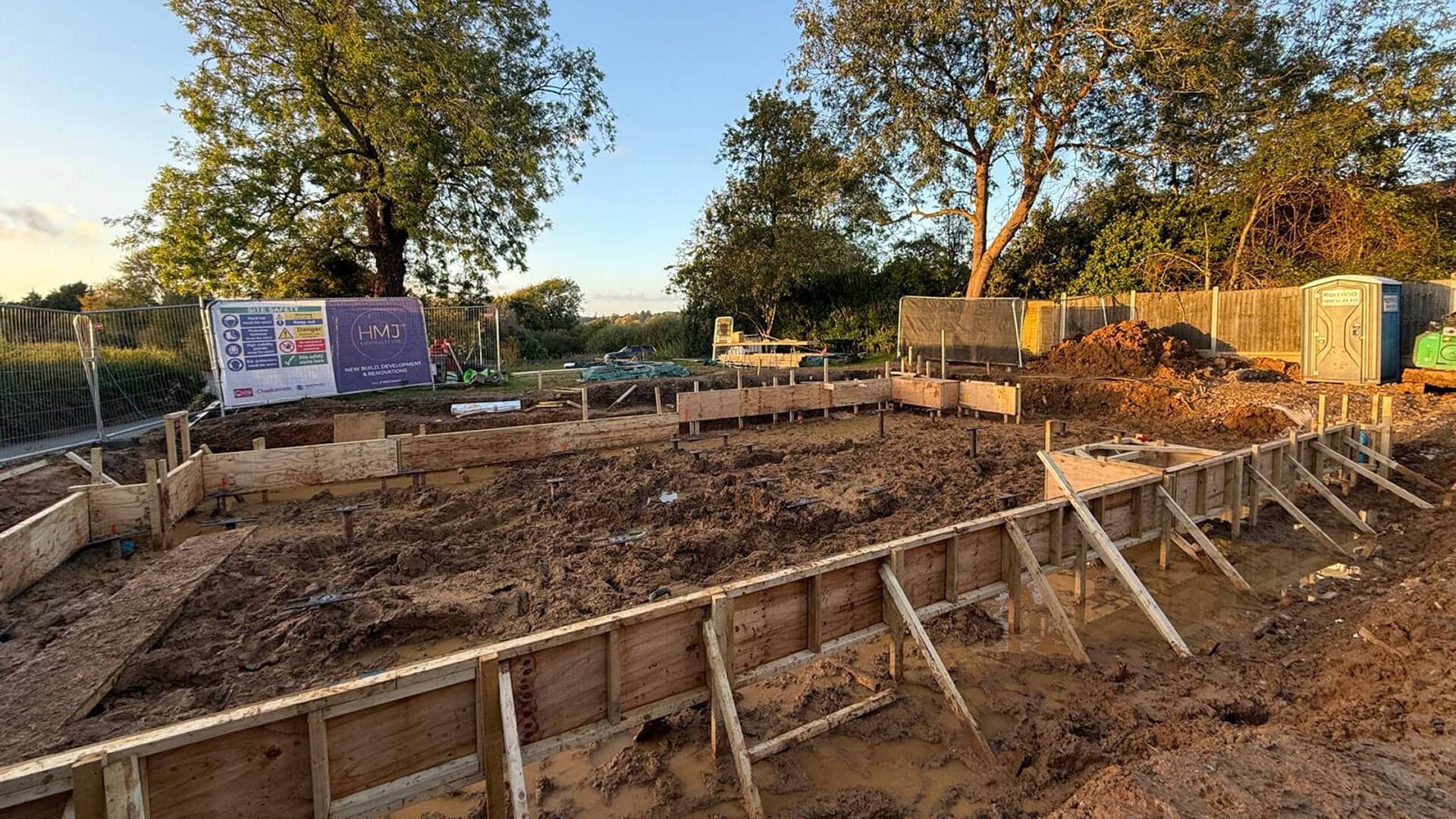

Results/Conclusion

• The project demonstrated our ability to provide a foundation solution in difficult ground conditions.
• The installation was fast and efficient while also staying on schedule.
• This sustainable project was supported and achieved by minimising the use of concrete while ensuring a strong and durable foundation.
