Helical pier pricing: how much does a helical pier foundation cost?
The price of a helical pier is generally calculated per unit, and the total cost depends on the number of piers required for your project. It varies based on several technical factors: the load to be supported, the depth of the bearing soil, the pile model, length, corrosion protection, and site access. Unlike traditional foundations, the price of a helical pier is not calculated per linear foot, but rather based on the required load-bearing capacity and soil conditions.
Even if the initial cost may seem higher than a cardboard tube (Sonotube), a Techno Metal Post helical pier foundation includes the pier itself, the support plate (mounting head), the green sleeve, installation, and specialized equipment, making the overall cost often comparable or lower once excavation, concrete, and site restoration are considered.
Several criteria influence the price:
- The loads to be supported: Higher loads require larger piles, which increases the cost.
- The length of the piers: If the soil has low density, extensions must be added to reach dense (bearing) soil. These extensions create an additional cost for each pier.
- The helix size: The size of the helix can also influence the price, especially for larger diameters. For example, a pier with a 16" helix will cost more than one with an 8" helix.
- Corrosion protection: Galvanized piers offer better corrosion resistance, but their price is generally higher than that of black steel piers.
As an indication, the price of a helical pile for supporting a deck or an addition may be in the range of a few hundred dollars, while a pile designed to support a five-story building may cost several thousand dollars.
What is a helical pier?
Helical piers are now a widely used foundation solution for homes, cottages, additions, decks, porches, and even commercial projects. This technology consists of screwing a steel pile into the ground until it reaches dense soil or bedrock, without excavation or concrete. Result: a foundation that is quick to install, stable over the long term, perfectly adapted to freeze-thaw cycles and to clay or unstable soils.
What are the advantages of helical piers?
Choosing helical piers means opting for a solid, efficient, aesthetic, and durable foundation:
- Installation is quick: often completed within a few hours
- No excavation: the site remains intact, with little to no restoration required
- No concrete: construction can begin immediately after installation
- Excellent stability against freeze-thaw cycles
- Installation possible year-round, even in winter
- A foundation system recognized by municipalities and compliant with building codes

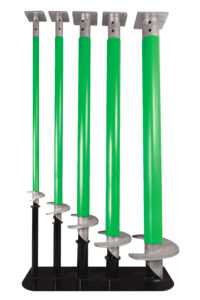

Characteristics of a helical pier
A helical pier is composed of:
- a structural steel shaft
- one or more helices at the base of the shaft
- a connection head adapted to the structure (wood, steel, or concrete)
Piers are available in several diameters, lengths, and models (P1 to P5 and above), allowing the foundation to be precisely adapted to each project, from a simple deck to a commercial building.
They are made of durable steel and can be galvanized or oversized to ensure a minimum lifespan of 50 years, depending on applicable standards and soil conditions.
Why is there no fixed price online for Techno Metal Post helical piers?
A helical pier is not a standard product, but a custom-engineered foundation solution. The final price mainly depends on three technical factors:
1. The structure to be supported (pier model)
A light deck requires a smaller model than a home addition, cottage, or commercial structure. The higher the load, the larger the pier will be.
2. Soil conditions (depth)
The pier must reach dense soil or bedrock. Reaching bearing soil at 6 feet versus 20 feet requires different lengths and extensions, which directly impacts the price.
3. Site access
The equipment used varies depending on accessibility: restricted backyard, sloped terrain, or large-scale job site. Logistics can therefore affect the cost.
Helical pier installation
Installation is carried out using specialized equipment that screws the pier into the ground until the required load-bearing capacity is achieved. During installation, the torque is measured in real time, allowing precise verification of the load that each pier can support.
Key advantages:
- no excavation
- minimal debris
- clean and precise installation
- work can be done year-round
Helical pier vs concrete foundations: comparing the real cost
Comparing only the displayed price is a common mistake. The total project cost must be considered.
Example comparison (typical residential project)
For a deck of approximately 215 square feet:
- Helical pier foundation: often a few thousand dollars, installation included
- Concrete foundation: higher costs once excavation, formwork, concrete, curing time, and site restoration are included
👉 In many residential projects, helical piers offer a very competitive cost-performance ratio.
What you save with Techno Metal Post
- No excavation: no heavy machinery or soil disposal
- No site repairs: lawn and landscaping preserved
- Time savings: construction can begin immediately after installation
- Less labor: is required throughout the project
What is included in the price
1. Engineering and compliance
The price includes analysis by the in-house engineering department. For a minimal fee, it is also possible to obtain documentation for permit applications and/or a compliance certificate required by many municipalities.
The technology is recognized by the ICC-ES as certified (ESR #3418).
2. Exclusive technology
- Green sleeve: allows the ground to move without lifting the structure during freeze-thaw cycles
- Corrosion protection: additional steel thickness, galvanization, or cathodic protection depending on soil conditions and project type
3. Load-bearing guarantee
Each helical pile is installed with measured and validated load capacity, eliminating any guesswork.
What is the price of helical piers depending on the type of project?
The cost mainly varies depending on the application:
- Deck / porch / fence: lower cost
- Addition / sunroom: mid-range cost
- House / cottage / commercial building: higher cost, but highly competitive compared to concrete
👉 A personalized estimate remains the best way to obtain an accurate price.
Summary
If you are looking for:
- a durable foundation
- installed within a few hours
- without excavation
- engineer-certified
- and designed for local soil conditions
👉 Techno Metal Post helical piers are an excellent long-term investment.
Ready to get an estimate?
The best way to obtain an accurate estimate for your project is to contact a local installer. You can present your project details, and they will provide you with a free quote tailored to your needs.
